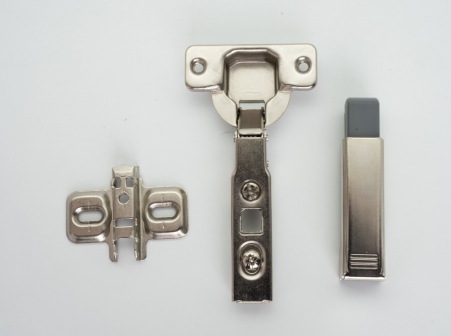

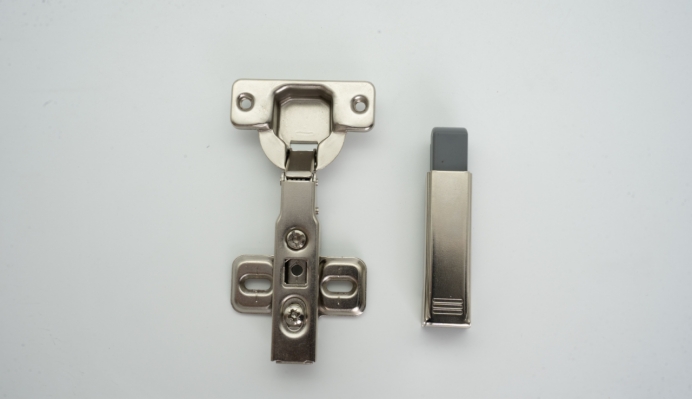

An external hinge damper (also known as clip-on damper, “frog head damper,” or add-on soft close device) is a classic furniture hardware upgrade solution designed for cabinet hinges. It was originally developed to upgrade traditional non-soft-close hinges into a soft closing system without replacing the entire hinge.
This makes it widely used in cabinet renovation, furniture repair, and after-sales upgrade projects, especially in older kitchen systems. However, despite its convenience, external dampers are not universal accessories. In real applications, many users find that they cannot fit all hinge types.
One of the main reasons external dampers fail to fit all hinges is the subtle dimensional differences between hinge arms. Even when hinges look similar (for example, full overlay straight-arm hinges), each brand uses its own mold design and production standard.
These small differences include:
· Variations in hinge arm width
· Differences in thickness and surface curvature
· Slight structural reinforcements or stamping changes
External dampers are designed to tightly wrap around the hinge arm like a housing clip. Because of this:
If the hinge arm is too wide, the damper cannot be installed or if it is too narrow, the damper becomes loose and unstable
In addition, different hinge linkage systems (such as 4-bar or multi-link mechanisms) affect the motion path of the door. This means the damper piston may not align correctly with the closing force point, leading to weak or failed damping performance. Even a 0.2–0.5mm deviation can result in incompatibility.
Another major limitation comes from the hinge arm mounting hole design. The external damper relies on a locking claw mechanism that must securely engage with a hole in the hinge arm. However, there is no global standard for this structure. Common compatible designs include: Rectangular mounting holes and standard quick-release hinge slots. Common incompatible designs include: Round holes, Semi-circular (half-moon) slots or solid hinge arms without any opening
Because each manufacturer independently designs its own hinge system, the hole shape and positioning vary significantly. If the structural interface does not match, the damper simply cannot be installed.
External hinge dampers are hydraulic buffer devices only. They do not generate closing force; they only control speed and reduce impact.
For this reason, they must be used with self-closing hinges (spring-loaded hinges).
· Standard self-closing cabinet hinges
· Mechanical hinges with built-in spring force
· Push-to-open hinges
· Rebound hinges (such as M27-type systems)
· Non-spring hinges
Without spring force, the cabinet door cannot complete the final closing movement needed to activate the damping system.
In the furniture hardware industry, most manufacturers design their hinge systems independently.
This is mainly due to:
· Patent protection strategies
· Different mechanical motion designs
· Independent mold and tooling systems
· Product differentiation requirements
As a result, hinge structures such as arm shape, hole design, and motion trajectory vary significantly across brands. This lack of standardization is the root cause of compatibility issues for all aftermarket soft close hinge adapters.
External dampers are not required for every cabinet door. Proper configuration improves performance and reduces cost.
Standard cabinet doors (≤ 1000mm height, 2 hinges)
· Install 1 external damper
· Provides smooth and quiet soft-close effect
Large or heavy cabinet doors (3–4 hinges)
· Start with 2 dampers
· Adjust based on closing speed and door weight
This flexible installation method ensures optimal damping performance without overloading the system.
External hinge dampers are a structural compatibility-based retrofit solution, not a universal accessory.
Their compatibility depends on three key factors:
· Hinge arm dimensional accuracy
· Mounting hole structure design
· Presence of a self-closing spring mechanism
Understanding these limitations helps prevent installation failures and ensures a more stable and smooth soft close cabinet upgrade experience.
